ICON_SMALL.tif Fountain Supply Company FVN
Float Valve Niche
Floatbox Floatbox1
Description

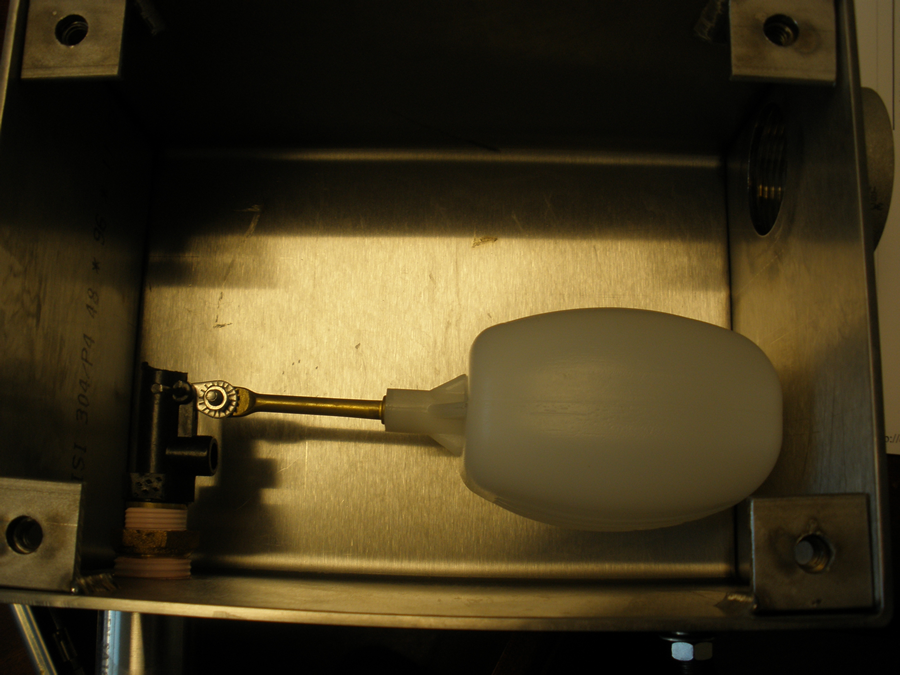

  The float valve niche water level controller is an economical way to control the water level in a water feature. By utilizing
a small float valve the overall size of the niche is one of the
smallest in the industry. Also integrating an overflow drain
connection helps reduce components in the basin wall.

Part Number
* FVNSS-50
Cut Sheet
* PDF Version
Specification
* Water level: Shall be 2"(inches) down from top of niche.

* Face Plate: Shall be stainless steel. Optional brass, copper and bronze face plates are available upon request.

* Niche: shall be welded stainless steel with a stainless steel bonding stud and mounting brackets. Optinional brass, copper, and bronze niche are available upon request. A bonding lug that is UL Listed for direct burial in earth or concrete is available upon request.

* Hardware: Shall be stainless stee. Optional brass fasteners are available upon request.

* Float Valve: Shall be brass, stainless steel, and plastic.

* Inlet: Shall be 1/2" NPT female plumbing connection.

* Drain: Shall be 1-1/2" NPT female plumbing.
